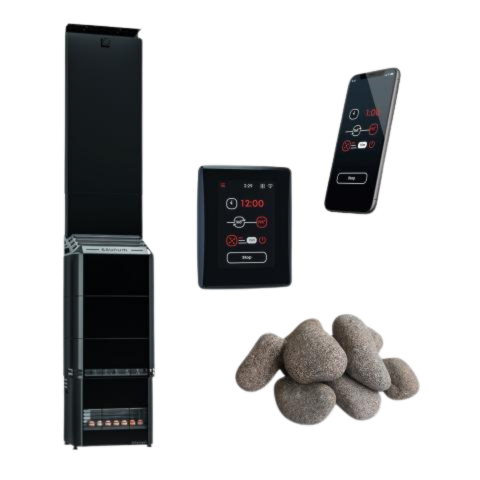

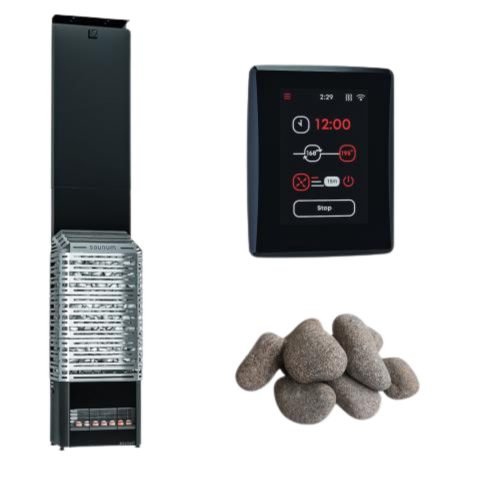

Saunum AIR 5 WiFi Sauna Heater Package

$6,533.00

Shipping calculated at checkout.

Body Type: Stainless Cage

Stainless Cage Solid Steel

European Design – With an elegant black steel or stainless steel finish, Saunum combines Scandinavian design and quality materials.

Massive Stone Capacity – Stones are the heart of a Nordic sauna. Ample stones result in softer, more even heat, and can produce more luxurious steam.

Himalayan Salt Reservoir – Himalayan Salt Spheres are positioned within the air stream so that salt ions are propelled throughout the sauna to deliver health benefits.

UL-listed for safety.

Installation Tutorial

Product Specifications

Certification/Global Safety Rating UL (Underwriters Laboratories) Heat/Steam Equalizer Module 3-Speeds, Whisper-Quiet Operation Ceiling Hot Air Intake 17.72" x 4" ( 450.09 x 101.6 mm) Cool Air Intake Type Adjustable Valve, Side-Mounted, 12" (304.8 mm) Off Floor Cool Air Intake Size 2" x 2.75" (50.8 x 69.85 mm) Blended Air Output 4.31" x 14.13" (109.47 x 358.90 mm) Himalayan Salt & Aroma Tray Type Removable, Slotted Himalayan Salt & Aroma Tray Size 16.5" x 4.5" (419.1 x 111.76 mm) Sauna Heater System Model AIR 5 Certification/Global Safety Rating UL (Underwriters Laboratories) Heater Body Style Stainless Steel Heating Elements Incoloy (Stainless Steel) Heating Element Protection Air Tunnels, Slotted Stainless Steel, Three Room Size 106 - 212 (3-6 Cubic Meters) Wattage Rating 4800 Operating Voltage 240 VAC Phase Single Amperage 20 Weight 106 lbs (48 kg) Shipping Weight with Stones 300 lbs (136 kg) Width 18.3" (465 mm) Depth 12.4" (315 mm) Height 88.58" - 94.48" (2250-2400 mm) Minimum Ceiling Height 71.48" (1815.6 mm) Stone Capacity 132lbs Stone Size 2" to 4" (5-10 cm) Circuit Breaker 30 Amp Wire Size to Power Unit (2) #10 + N + G Wire Size - Power Unit to Elements 7-Conductor Cable, #14AWG , 90-Degree C, 5' (152.4 cm) Wire Size - Power Unit to Heat Equalizer 5-Conductor Cable, #18AWG, 90-Degree C, 5' (152.4 cm) Room Temperature Sensor Pre-Mounted with Integrated Cable (150- Degree C), 9.5' (289.56 cm) Display Panel Model AIRIQ WI-FI Certification/Global Safety Rating UL (Underwriters Laboratories) Type Digital, Soft-Touch Response Tactile with Haptic Feedback Technology Language Selection 16-Languages Wi-Fi Capability Wi-Fi, App-Based Updates, and Operation Notifications Sauna is Ready, Heater Status, Open Door, and Overheating Protection Safety Features Admin, Screen Lock, Door Sensor, and Overheat Protection Color Nordic Black Heat Equalizing Control 3-Speed Adjustability Width 3.3" (83.82 mm) Depth .8" (20.32 mm) Height 4.1" (104.14 mm) IP Rating IP20 Minimum Temperature Setting 104-Degrees Fahrenheit (40-Celcius) Maximum Temperature Setting 194-Degrees Fahrenheit (90-Celcius) Duration Timer 1 - 6 Hours Display Panel Cable 4-Conductor Cable (150-Degree C), 20AWG, 15' (475.2 cm) Door Sensor and Cable Assembly 2-Conductor Cable (150-Degree C), 20AWG, 9.83' (299.62 cm) Door Sensor Probe 1" Long and .24" Diameter (25 x 6 mm) Operating Temperature Range -4 - 145-Degrees Fahrenheit (-20 - 62 Celsius) Programmability Weekly Scheduling with Three Programmable Sessions Temperature Settings Fahrenheit or Celsius Region Settings North American and European Versions Room Temperature Sensor Pre-Mounted with Integrated Cable (150- Degree C), 9.5' (289.56 cm)

Features

Air Mixing Technology – Saunum patented air blending system mixes cold oxygen-rich air from the floor with hot oxygen-poor air off the ceiling to solve the discomfort so many associate with sauna. Whether you like it extremely hot, or just warm, Saunum delivers both in a way that heat and oxygen is felt head to toe.

European Design – With elegant black steel finish, Saunum combines Scandinavian design and quality materials. Select the the simple elegance of the Nordic black steel body.

Massive Stone Capacity – Stones are the heart of a Nordic sauna. Ample stones result in softer, more even heat, and can produce more luxurious steam. Large 265 pound stone capacity (required 8 boxes sold separately).

Himalayan Salt Reservoir – Saunum’s Himalayan salt tray is positioned within the air stream so that salt ions are propelled throughout the sauna to deliver health benefits more effectively.

Dry your Sauna – Go ahead, toss water onto the rocks! Saunum is engineered for water-tossing, and when you're done enjoying the steam, the patented fan system will conveniently help dry your sauna.

UL Certification – Safety and reliability are priorities at Saunum, and each product is engineered to exceed strict UL standards.

Available Aromatherapy - Add another sensory layer with Saunum's optional aromatherapy system, which infuses aroma into the steam to further transform your experience.

AirIQ WiFi

Easily control the Saunum heater and climate device with just a few taps on the screen.

• For use with Saunum electric heaters up to 12 kW (Over 12 kW requires a separate contactor box.)
• Temperature selection ranges from 104 °F – 194°F (40°C - 90°C).
• Allows you to set the operating time of the heater: up to 1 hour in a private sauna, up to 6 hours in a public sauna.
• Allows you to select up to 3 Preset Sauna settings: (selectable temperature, time, climate device speed)
• Classic Nordic Steam Sauna -for temperatures from 140°F - 194°F (60°C - 90°C). Valve of the Climate Device open to 25% with speed level 1.
• Humid Steam-rich Sauna -for temperatures from 113°F - 140°F (45°C - 60°C). Valve of the Climate Device open to 100% with speed level 2 or 3.
• Mild, Relaxing Sauna -for temperatures from 104 °F – 131 °F (40°C - 55°C). Valve of the Climate Device open to 25% with speed level 1.
• AirIQ WiFi allows for sauna session scheduling for a specific day, time, and sauna type for the week.
• Built-in Wi-Fi interface for Saunum mobile app available on AppStore and Google Play.
• Notifications will be conveniently displayed directly onto your mobile device via the Saunum mobile app.
• Sauna is Ready
• Heating Status
• Door is Open
• Overheating protection applied.
• Multi-Language menu includes English, German, Estonian, Finnish, Russian, Swedish, and Slovenian.
• Outside Sauna room installation
• Screen lock
• Child Safety Lock
• Temperature Sensor
• Door Sensor

Stones

• High-Quality Olivine diabase raw stone
• Rounded, Pre-washed & ready to use
• Durable with high-heat capacity
• Stones range from 2" to 4" (5-10 cm)

What's Included

• Nordic Black Metal Stone Basket
• Heat Equalizing Module
• Telescopic Hot Air Intake
• Heating Element Air Tunnels (3)
• Himalayan Salt Spheres (7)
• Hot Air Intake Cap
• Stainless Steel Protective Grille
• Heating Element Electrical Cable, 5' (152.4 cm)
• Heat Equalizer Electrical Cable, 5' (152.4 cm)
• Room Temperature Sensor & Cable, 9.5' (289.56 cm)
• Door Sensor & Cable Assembly, 9.83' (299.62 cm)
• IQAir Display Panel Cable, 16' (487.68 cm)
• Quick Install Guide
• Installation and Operation Manual
• Limited Warranty

Manuals

Saunum AIR Manual

Shipping Information

About This Delivery: This sauna heater system requires a scheduled appointment. It arrives on a wooden pallet and is encased in three-ply cardboard for solid protection. The driver is responsible for “delivery only” and will provide limited assistance at the site. Prior to shipping, we may contact customers to share shipment details and needs and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses. Our goal is to ensure your project’s success.

Freight Quote Requests: Email info@thesaunaandcoldplungeco.com. Please include sauna heater model number and full shipping address.

Accessory Freight: Sauna accessories can be shipped with this sauna heater to save on shipping costs. Consider adding accessories to sauna heater orders to bolster margins.

Air Blending Technology

Saunum patented air blending system mixes cold oxygen-rich air from the floor with hot oxygen-poor air off the ceiling to solve the discomfort so many associate with sauna. Whether you like it extremely hot, or just warm, Saunum delivers both in a way that heat and oxygen are felt head to toe.

Health Benefits

Improved Circulation and Cardiovascular Health

The heat from the steam sauna causes blood vessels to dilate, which increases blood flow and circulation throughout the body. This can help improve cardiovascular function, reduce blood pressure, and promote heart health over time.

Detoxification and Skin Health

Steam saunas encourage sweating, which helps the body eliminate toxins through the skin. The steam also opens up pores, promoting clearer skin by flushing out impurities. It can leave the skin feeling rejuvenated and more hydrated.

Muscle Relaxation and Pain Relief

The moist heat of a steam sauna helps relax tense muscles, reduce stiffness, and relieve joint pain. It can be especially beneficial for those recovering from workouts or dealing with conditions like arthritis, as the heat promotes muscle recovery and reduces inflammation.
